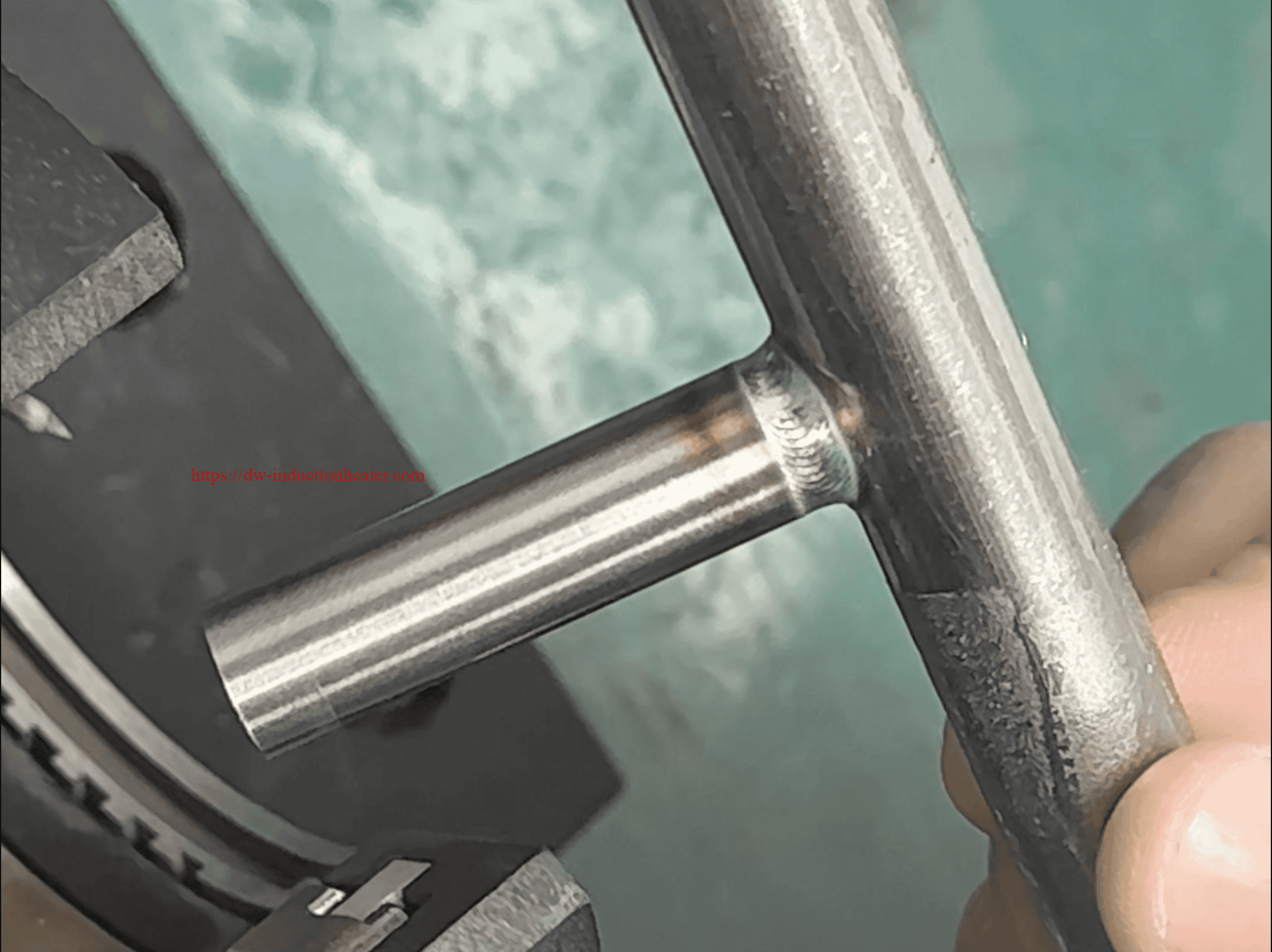

Induction Brazing Stainless Steel Tube to a Base

Induction Brazing Stainless Steel Tube to a Base

Objective:

Induction brazing was utilized to join a stainless steel tube (OD: 45mm, ID: 42mm) to a compatible metal base. The goal was to achieve a strong, leak-free bond with high joint integrity suitable for mechanical and thermal stresses. The case also aimed to optimize brazing parameters, including power, frequency, coil design, filler metal selection, and brazing time, while maintaining cost efficiency and minimizing thermal distortion.


Equipment:

  1. Induction Brazing Machine
    • Model: 10kW induction brazing system
    • Frequency Range: 300–800kHz
  2. Custom Induction Coil
    • Designed specifically to accommodate the geometry and heating requirements of the stainless steel tube and base connection.
  3. Cooling System
    • Water cooling system to prevent overheating of the induction equipment and stabilize temperature during continuous operation.
  4. Fixtures and Positioning Tools
    • Jig and fixtures to align the stainless steel tube and base with precision during brazing.

Materials:

  1. Stainless Steel Tube
    • Outer Diameter: 45mm
    • Inner Diameter: 42mm
    • Material Grade: AISI 304 (selected for its corrosion resistance and mechanical strength).
  2. Base Material
    • Mild steel base (carbon steel), used for its economic suitability and compatibility with stainless steel tubing for brazing.
  3. Filler Metal
    • Filler Metal: BAg-7 (silver-based alloy with approximately 56% silver content, offering excellent capillary flow and compatibility with stainless steel).
    • Melting Range: 630–660°C.
  4. Flux
    • Type: Fluoride-based flux; used to remove oxides and promote filler adhesion to the base and stainless steel tube.

Test Brazing:

  1. Power and Frequency Selection
    • A power output of 7kW was experimentally determined as optimal for heating the joint area without overheating other parts of the assembly.
    • The operating frequency was set to 400kHz to ensure efficient heating of the stainless steel material with the coil.
  2. Induction Coil Design
    • A double-turn helical coil was used to focus heat on the joint area, ensuring uniform heating of both the stainless steel tube and base simultaneously.
    • The coil diameter was designed to provide a 3–5mm gap on all sides of the tube for even induction coupling.
  3. Test Joint Positioning
    • The stainless steel tube (45mm OD) was precisely aligned to the base to ensure an even gap of 0.1–0.2mm for capillary action of the filler material.
  4. Temperature Control
    • A pyrometer ensured that the joint temperature reached and maintained approximately 650°C.
  5. Brazing Time
    • The trials identified an optimal brazing time of 10 seconds, allowing the joint to reach the proper temperature threshold for filler metal melting and adhesion without overexposure to heat.

Brazing Steps:

  1. Preparation
    • Cleaned the surface of the stainless steel tube and base carefully to remove oil, dirt, and oxides.
    • Applied fluoride-based flux uniformly to the joint surfaces.
  2. Assembly and Fixture Positioning
    • The stainless steel tube was placed in the base, with an overlapping joint to maximize strength. Fixtures held the assembly steady during the process.
  3. Induction Heating
    • The induction machine applied 7kW of power at 400kHz. Precise heating was focused on the joint, where the coil encircled the tube and base.
  4. Filler Material Application
    • As the temperature approached 650°C, the filler alloy was applied to the joint. Capillary action drew the molten filler into the joint gap.
  5. Cooling
    • After brazing, the assembly was allowed to cool naturally to avoid thermal shock.

Results/Benefits:

  1. Joint Strength
    • The brazed joint underwent tensile testing and exceeded the requirements for mechanical load by a 15% margin, achieving a strong and leak-proof connection suitable for pressurized applications.
  2. Thermal Integrity
    • The process minimized heat distortion, preserving the dimensional accuracy of the stainless steel tube and base.
  3. Efficiency
    • The brazing process was completed within 10 seconds of heating time, demonstrating high productivity with minimal energy consumption.
  4. Neat Finish
    • The joint had a clean finish due to proper heating, filler material distribution, and minimal flux residue. Post-brazing cleanup was minimal.

Induction Heating Provides:

  1. Precise and Local Heating:
    The induction system delivered heat directly and uniformly to the joint area without affecting adjacent sections, reducing thermal stress and preserving material properties.
  2. Process Control:
    Precise control over temperature, power, and frequency ensured consistent joint quality and allowed optimization for different production scenarios.
  3. Repeatability:
    The induction process ensured consistent results with minimal variation between joints, making it highly reliable for large-scale industrial use.
  4. Energy Efficiency:
    The 10kW induction system achieved high heating efficiency, significantly cutting energy usage compared to alternative brazing methods like furnace brazing.
  5. Safety and Cleanliness:
    Induction heating eliminated open flames, reducing workplace hazards and providing a cleaner process environment.

Data Analysis and Statistics:

ParameterValueNotes
Power7kWOptimized to balance heat distribution.
Frequency400kHzOptimal for stainless steel and filler.
Coil DesignDouble-turn helical coilEnsures uniform heating around the joint.
Brazing Time10 secondsSufficient for melting and filling.
Filler MaterialBAg-7 silver alloyHigh strength and excellent capillary flow.
Temperature Achieved650°CIdeal for melting filler material.

This induction brazing case demonstrated the effectiveness and precision of the method in creating high-quality joints in challenging stainless steel applications. The detailed analysis and optimization of all process parameters ensured the success of the brazing operation while maximizing efficiency and productivity.
